应用场景与概况/Brief Introduction：

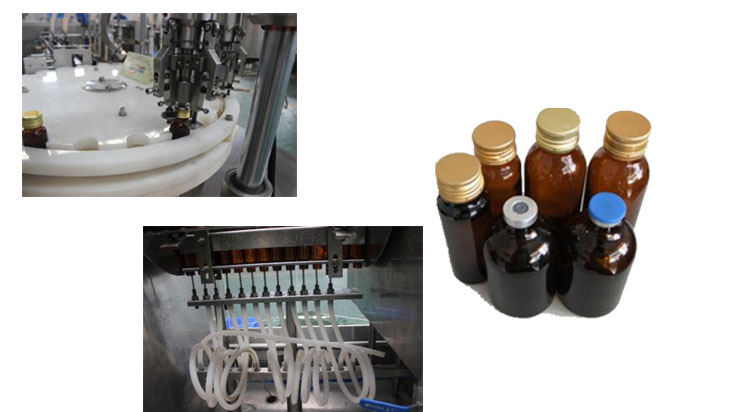

本产量线比较适合30ML上面口服方式液的分装产量，由供瓶机、辊筒洗瓶机、直线条式分装轧（旋）盖机、旋转式标贴纸签机等机械结构，可全电脑自动成功理瓶、洗瓶、分装、上盖、旋（轧）盖、标贴纸签等工步。通常广泛用于医药集团、肉制品、医药化工的的各种各样的液态货品的分装联动性产量。本产量线完成非常符合GMP需要。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

性能 /Characteristic：

◆相貌不锈钢圆管304材质为304不锈钢圆管304，分装部分组采316L不锈钢圆管304，适合GMP规则。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可融入多标准研发。can be situable for several bottle specs.◆运作增强，躁音小，包装高精度 。Stable running,low noise,precise filling.◆破瓶率低，原料不良好率高，能效少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整身生育线可单机联机操纵和连锁店操纵。The whole line can single machine control or interlock control.

水平数据/Main Technical Parameters：

适于样式Filling Volume	30-150ML
分装头数Productivity	低速度4头   &nbs🍷p;          公路8头 4 at low speed      &🅺nbsp;      high speed 8
生产的力量	高转速30-50瓶/分     高70-100瓶/分 30-50bottles/min  70-100bottles/min
包装要求Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电源开关Power Supply	220V/50Hz
工作电压Power Supply	2.5kw
生产方式线总长Dimension	7500*1000*1700MM
