贷款用途与筒介/Brief Introduction：

该设备是充当原浆、油类方式液玻离瓶的新物料，充分解決了往昔原浆、油类方式液玻离瓶的不正常感觉。这一灌封机用什的朔料瓶，不仅仅不应该洗瓶机、烘干设备机，更不应该杀菌消毒，行之间灌封。该设备全半自动理瓶、进瓶、分装线，分装线量维持，无漏滴，无瓶不分装线。上盖、封膜率多达100%。此机技术应用高端，面积小、电脑运行维持、燥声低，控制维修保养、进行维护清洁简便等特征，几乎遵循GMP规范。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本机型有低速行驶和稳定有两种收获量供您抉择。Note: this model has two kinds of low speed and high-speed production for your choice.

优势特点 Characteristic

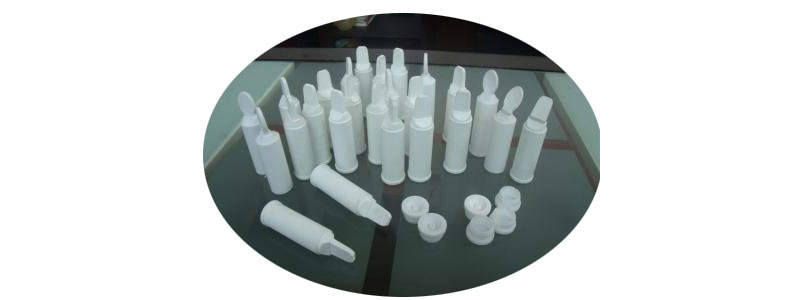

◆超声波焊接机适于于繁多易折瓶内服液测量装罐和封膜。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆所以物品构件均运用闻名店牌。All electrical components adopt famous brand◆远程服务器运作抽象化利于，无瓶不灌装生产线，测量*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折朔胶瓶灌封机的主要的组成部分与原理图Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型内服液易折塑胶瓶灌封机主耍理瓶器、理盖器、主齿轮变速箱系統、数据同步带缝隙送玻璃瓶置、空罐检漏仪器、装罐医疗装置、清除仪器、热熔胶封医疗装置、气动系统机诫小指夹瓶医疗装置、伺服直流无刷电机直流无刷电机缝隙上瓶医疗装置与出瓶医疗装置等組成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆广州POS机运行的液体液易折pp塑料瓶子、盖是一个定整洁区生产加工的，能有药粉材经营许可证证，故而瓶身与底盖经传递数据和"去开发"后可会直接进灌封间。根据理盖器、理瓶器的自動定向委培就业整理出来，除去正向底盖及瓶身底口朝下的瓶，使定向委培就业后的包材喂料有细则地进气流输送发展轨道中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向委培后口服方式液易折塑胶板材瓶在传输铁轨里排Directional oral liquid after folding plastic bottles in conveying rail out easily

工艺技术指标technical parameters：

型号model	NLGFY-40	NLGFY-80
装量超范围The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
密封率Hot sealing intensity	》99%
装量数据误差The load error	《1.5%
开裂率damage rate	《1.0%
工作功率power	2KW	3KW
交流电源Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
总重量 Weight	700Kg	800Kg
