使用与简单介绍/Brief Introduction：

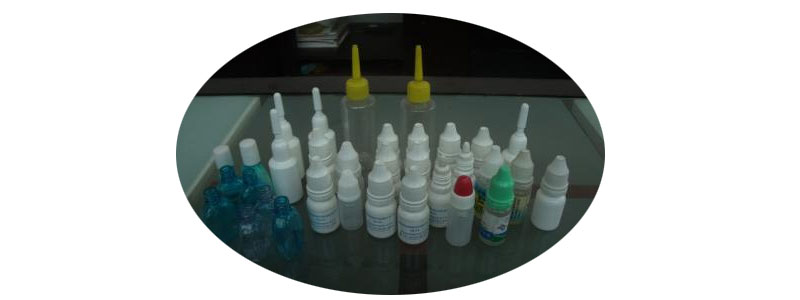

该设备适合于2-30ML各类材质原料的方形扁形塑胶或安全瓶子的眼药粉罐装、自动化烟油等小含量罐装.该设备由高要求气缸轴测量范围系统供应测量范围等分盘品牌固定上塞上盖;变快度气缸轴齿轮传输供应旋盖头的什降;恒扭距旋盖;肠蠕动泵测量罐装;触屏屏有效控制.无瓶不罐装,不用内塞,外盖.具品牌固定精确性,齿轮传输保持稳定,确保瓶子,测量准.控制比较简单等缺点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点/Characteristic：

◆微台式电脑制定、装量小于、控制利于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆监控主机转速比可去有级变频柜可控硅调压。the mainframe running speed is stepless frequency conversion.◆出产油量自行降钙素原检测保持。the product quantity can be controlled. ◆多种多样故障率显示系统功能模块(如低压力。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行停止技能，对任意发展轨道显现累计无罐装、无内塞现状可自行停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

水平性能指标/Main Technical Parameters：

适于技术参数Filling Volume	2-30ml
分娩程度Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线精准度Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
工率 Power	2.0 kw
刷卡机净重量Weight	550 kg
造型尺寸规格Dimension	1800*1000*1500mm
