种类与概述：Purpose and introduction

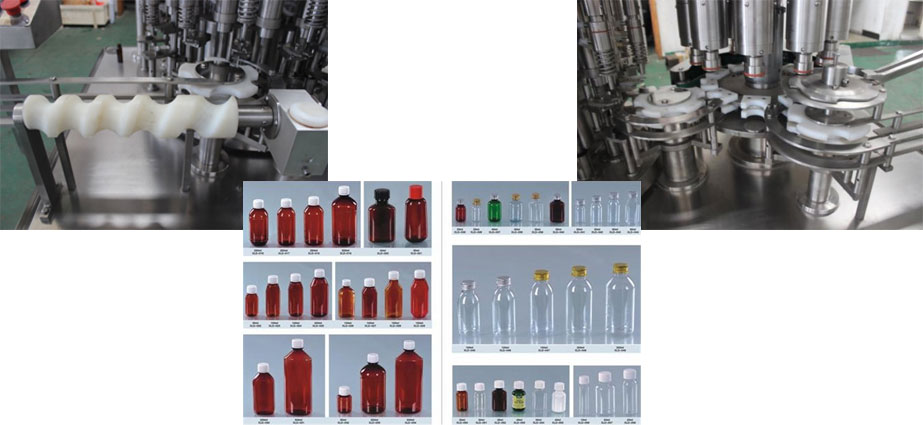

该机适于于对30-500ML全系列夹丝瓶子、材料瓶的包装塑封。选取经济往来联系式连杆参与包装，磁感应自由振荡送盖，也可以轧盖(重金属式)或旋盖(材料盖)塑封，也可以和前后轮的分娩工艺流程设施设备连结组建分娩线，凡此种种也可以在购买百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优势：characteristic

装量较准，杜尽滴漏问题。缺瓶不装罐。 变頻变速。 自动界面显示记数功效与作用。 该机均按GMP需求方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

工艺技术要求/technical parameters：

型号 model	NQGX30-500
适用于产品规格Cutting dimension	30-500ml
生产出来工作能力Production capacity	80-200瓶/分（罐/秒钟）80-200 bottles/min (cans/min)
灌装生产线gps精度 Filling accuracy	≤±1%
主机电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机戒总重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
